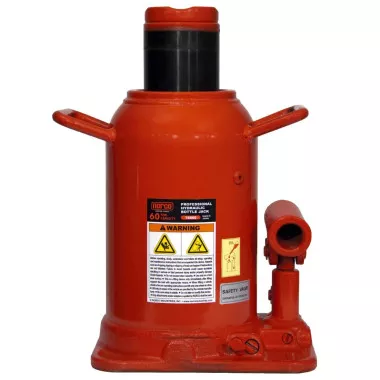

Norco 76560 60 Ton Bottle Jack
Intended Use
For heavy duty truck, agriculture, construction, mining, mobile home, oil field, automotive, and marine applications where lifting, pushing, spreading, bending, pressing, or straightening are required.
Features
- Two piece zinc plated handle.
- Prevent rust with “Parkerized” pump piston, ram and extension screw.
- No leak “Uniweld” construction.
- State of the art design reduces repair time.
- Longer wear life due to internally machined oil passages, smooth bearing surfaces and
close tolerances. - Lightweight forged base provides more steel only where strength is required.
- The heavy-duty release valve was designed to eliminate parts and reduce the chances of breakage and excessive wear.
- Safety bypass and overload systems prevent cylinder damage and prevent the jack from being used beyond the ASME/PASE load-limiting standard.
Specifications
| Dimensions | |
| Low Lift Height | 12″ |
| High Lift Height | 18.6875″ |
| Stroke | 6.6875″ |
| Screw Extension | — |
| Base Size | 7.4375″ x 9.3125″ |
| Carry Handle | Yes |
| Shipping Weight | 82 lbs. |
TAX needs to be applied to this product in these states California -Texas – Indiana – Florida – Missouri.
WARNING: California Prop 65
Downloads
Operations Manual
Exploded Drawing
Product Specifications
Sales Sheet
Warranty Information
