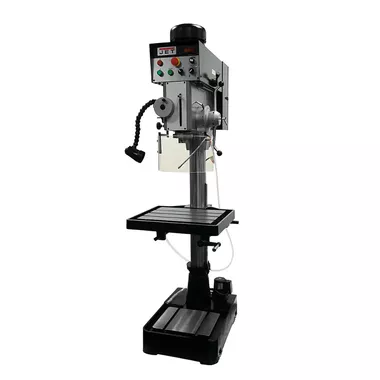

JET Tools JDP-20EST-460-PDF, 20″ EVS Geared Head Drill Press With Tapping & Power Downfeed 460V
The JET JDP-20EVST-460-PDF is a 20-inch electronic variable speed geared head drill press with tapping and power downfeed, wired for 460V three-phase power and driven by an AC inverter for continuous speed adjustment during operation. A heavy-duty steel column and precision-ground T-slot table support accurate work, with forward and reverse tapping and high torque in both directions.
Features
- Heavy-duty steel column for increased precision and rigidity.
- Heavy Duty casted head for more accuracy and rigidity.
- Large Precision Ground T-slot Production Table for easy set ups.
- Latest AC Inverter Variable Speed Technology.
- CSA Coolant System.
- CSA/CUS: Following strict guidelines and electrical requirements, these JET Drills are CSA/CUS certified.
- LED Machine Lamp.
- Spindle Safety Guard.
- Spindle is supported by high quality ball bearings.
- High Torque at all speeds both forward and reverse.
- Continuous Speed Adjustment while in operation.
- Front Mounted LED Spindle RPM Readout.
- Forward and Reverse for Tapping.
- Front Mounted Positive Control Depth Stop.
- Large Hand Grips designed with the Users comfort in mind.
- Coolant System.
Specifications
| Model Number | JDP20EVST-460-PDF |
| Base Dimensions (In.) | 27 x 19 |
| Base Size (In.) | 27 x 19 |
| Column Diameter (In.) | 4-1/2 |
| Distance Column to Spindle (In.) | 10-7/16 |
| Drilling Capacity Mild Steel (In.) | 2 |
| Drills to Center of Circle (In.) | 20 |
| Gross Weight (Lbs) | 847 |
| Inverter Type | B Type 230V 3Ph |
| Motor (HP) | 2 HP, 460V 3ph |
| Motor Power (HP) | 2 |
| Motor Voltage (V.) | 460 |
| Net Weight (Lbs.) | 808 |
| Overall Dimensions (L x W x H) (In.) | 42.5 x 27.16 x 78.74 |
| Prewired Voltage (V.) | 460 |
| Quill Travel w/ Powerfeed Engaged (In.) | 6 |
| Range of Spindle Speeds (RPM) | 60 – 2,000 (60-540/225-2000) |
| Spindle Distance to Base (In.) | 44.68 |
| Spindle Distance to Table (Max.) (In.) | 25.5 |
| Spindle Taper (In. x TPI) | MT-4 |
| Spindle Travel Auto (In.) | 60-2,000 |
| Spindle Travel (In.) | 6 |
| Style (Type) | Variable Speed |
| Swing (In.) | 20 |
| T-Slot Centers (In.) | 7-7/16 |
| T-Slots Number and Size (In.) | 3 – 5/8 |
| Table Size (L x W) (In.) | 22 x 18-3/4 |
| Table Travel (In.) | 20 |
| Tapping Capacity Cast Iron (In.) | 1 |
| Tapping Capacity Mild Steel (In.) | 1 |
| Weight (Lbs.) | 847 |
| Work Table Weight Capacity (Lbs.) | 154 |
