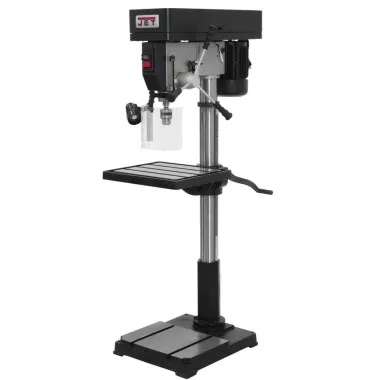

JET Tools IDP-22, 22″ Industrial Floor Model Drill Press
The JET IDP-22 is an industrial floor-model drill press built for heavy-duty metalworking, shipping standard with an oversize cast iron table and base. The ball-bearing spindle handles larger drilling capacities, and the crank-operated worktable rotates and tilts for angled drilling.
Features
- For added Safety, the IDP-22, 22″ Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
- Spindle is supported by high quality ball bearings.
- Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds.
- Large Hand Grips designed with the users comfort in mind.
- Rotating, 45° tilting, crank-operated worktable with quick release clamp.
- A 1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment.
- Adjustable tension spindle return spring.
- Drill chuck and key attach to the side of the drill press always within reach of the operator.
- On/off switch located on front of the drill press head.
- Heavy Duty construction.
- Cast Iron table and base.
- Table ground for accuracy.
Specifications
| Model Number | IDP-22 |
| Base Dimensions (In.) | 22-5/8 x 19-7/16 x 3-3/8 |
| Base Work Table (In.) | 21-1/2 x 18-5/16 |
| Chuck Size (In.) | 5/8 |
| Column Diameter (In.) | 3-5/8 |
| Distance Column to Spindle (In.) | 10-7/8 |
| Drilling Capacity Cast Iron (In.) | 1-1/4 |
| Drilling Capacity Mild Steel (In.) | 1 |
| Drills to Center of Circle (In.) | 22 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 35 x 19 x 67 |
| Range of Spindle Speeds (RPM) | 175 – 3,050 |
| Spindle Distance to Base (In.) | 48-1/2 |
| Spindle Distance to Table (Max.) (In.) | 28 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel (In.) | 4-13/16 |
| Style (Type) | Belt Drive |
| T-Slot Centers (In.) | 3/4 |
| T-Slots Number and Size (In.) | 2 and 5/8 |
| Table Size (L x W) (In.) | 18-5/8 x 16-1/8 |
| Work Table Weight Capacity (Lbs.) | 176 |
| Weight | 364 |
