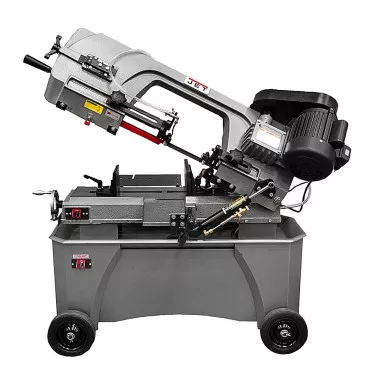

JET Tools HVBS-712, 7″ x 12″ Horizontal/Vertical Bandsaw
The JET HVBS-712 is a horizontal/vertical metalworking bandsaw that cuts in the horizontal position and converts to vertical use with its work table. A widened, taller stand adds a storage cabinet and chip tray, while a sealed gear drive, hydraulic downfeed and full coolant system support production cutting.
Features
- 9″ x 12″ work table in the vertical position.
- Improved Height and width of stand with built-in storage cabinet and chip tray.
- Adjustable material stop for repeatability.
- CSA/CUS : Following strict guidelines and electrical requirements, this JET Saw is CSA/CUS certified.
- Blade drive is a belt to sealed, hardened and ground gear drive system.
- Blade wheels are made from flanged cast iron for increased durability.
- Auto shut-off after cut.
- Adjustable ball bearing blade guides.
- Cast mounted adjustable hydraulic downfeed.
- Complete coolant system.
- Four 8″ rubber wheels for ease of movement.
- 3/4″ Bi-Metal blade.
Specifications
| Model Number | HVBS-712 |
| Cutting Capacity (W x D) (in.) | 7 x 12 |
| Round Capacity at 90 Degree (in.) | 7 |
| Round Capacity at 45 Degree (in.) | 4-1/2 |
| Rectangle Capacity at 90 Degree (in.) | 1 (H) x 12 (W) 2 (H) x 11-1/4(W) 4 (H) x 11 (W) 7 (H) x 10-3/8 (W) |
| Rectangle Capacity at 45 Degree (in. | 6-1/2 (H) x 4-1/2 (W) |
| Square Capacity at 90 Degree (in.) | 7 x 7 |
| Square Capacity at 45 Degree (in.) | 4-1/2 x 4-1/2 |
| Throat Depth (in.) | 7 |
| Vertical Tables (in.) | 5 x 6 |
| Vise Swivels (deg.) | 45 |
| Blade Size (in.) | 3/4 x .032 x 93 |
| Blade Wheel Diameter (in.) | 11-3/4 |
| Blade Speed (sfpm) | 86, 132, 178, 260 |
| Bed Height (in.) with out Wheels | 22-1/4 |
| Motor/Electrics (HP) | 3/4 HP, 115/230V, 1-Ph |
| Prewired | 115V |
| Overall Dimensions (L x W x H / in.) | 48 x 17 x 40 |
| Net Weight (lbs.) | 418 |
