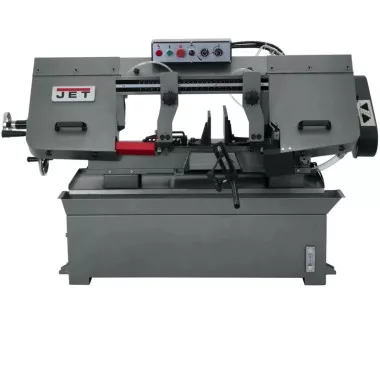

JET Tools HBS-1018W, 10″ x 18″ Horizontal Bandsaw
The JET HBS-1018W is a 10 x 18-inch horizontal bandsaw set on a heavy-duty machined bed to limit vibration during the cut. Carbide blade guides with double-row ball bearing support, coolant fed through the guides, and a fully adjustable hydraulic downfeed deliver consistent, accurate cuts in stock up to its rated capacity.
Features
- Adjustable Material Stop.
- Blade guides feature parallel double-row ball bearing support.
- Built-in, self-propelled blade brush extends blade life.
- Carbide blade guides feature parallel double-row ball bearing support.
- Coolant is distributed through the blade guides.
- Fully adjustable hydraulic downfeed with separate on/off control valve.
- Large hand wheel and built-in gauge provides easy blade tensioning.
- Proprietary oversized chip tray design minimizes over spray and reduces clean up.
- Quick-positioning vise with fully adjustable jaws.
Specifications
| Model Number | HBS-1018W |
| Amperage | 13A |
| Bed Height (In.) | 23.5 |
| Blade Speed (SFPM) | 82, 132, 210, 330 |
| Blade Speeds (SFPM) | 82, 132, 210, 330 |
| Blade Wheel Diameter (In.) | 14 |
| Cutting Capacity (W x D) (In.) | 10 x 18 |
| Drive | Belt Drive |
| Motor (HP) | 2 HP, 230V Only, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 69 x 28 x 42-3/4 |
| Prewired Voltage (V.) | 230 |
| Rectangle at 45 Degrees (In.) | 10 x 7-1/2 |
| Rectangle at 90 Degrees (In.) | 10 x 16 and 6-1/2 x 18 |
| Round at 45 Degrees (In.) | 7-1/2 |
| Round at 90 Degrees (In.) | 10 |
| Vise Swivels (Deg.) | 45 |
| Weight (Lbs.) | 906 |
