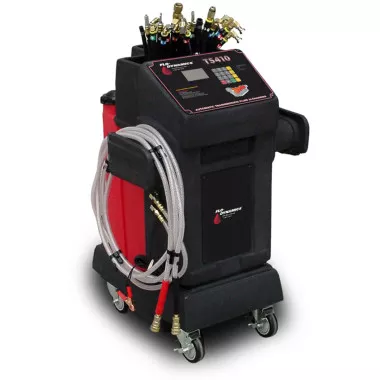

Flo-Dynamics TS410 ATF Inline Exchanger
Fastest service times in comparative testing. Large backlit LCD screen provides easy-to-follow screen prompts with service indicators.
Features
- Powerful 2.5 gallon per minute rated pump for unmatched speed.
- Fully automatic operation.
- Special chemical flushing mode.
- Proven, accurate fluid measurement (+/-3%).
- Individual ADD and REMOVE fluid buttons.
- Power interruption memory.
- Drains transmission pan for filter change.
- 24 quart capacity new and waste fluid tanks with 21 quart exchange capability.
- Pause button.
- 12 volt powered.
- Volt meter.
- Adapter rack drains into the waste tank keeping the adapters dry and organized.
- Rotocast polyethylene body and tanks won’t scratch vehicle.
- Small platform saves space.
- Quart counter.
- Durable 5-inch locking caster wheels.
- Clear service hoses provide visual confirmation of fluid exchange.
- 6.25” x 3.5” fully interactive easy-to-use color touch screen.
LCD Panel Features
- Ability to select 1 to 20 quarts exchange amount.
- Ergonomically correct working height.
- ADD/REMOVE fluid feature.
- Quart counter.
- Pause button.
- Fluid totalizer.
- Reverse hoses indicator.
Specifications
| TS410 | |
| Dimensions | 39”H x 24 3/4”W x 25”D |
| Weight | 133 lb. |
| New Fluid Tank | 24 quart. New and Waste |
| Used Fluid Tank | 24 quart |
| Power |
12V DC from vehicle’s battery |
