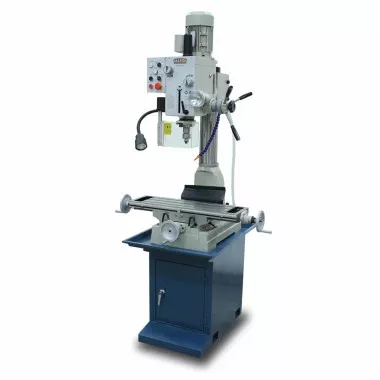

Baileigh VMD-828G Vertical Mill Drill
Don’t have the space for both a gear-driven Drill Press and a Milling machine? The VMD-828G combines 2 functions in 1 space-efficient machine. This Mill Drill lets you set the right speed for a given application, providing greater control and extending tooling life.
Features
- 2 hp motor runs on 110-volt power and will work almost any site.
- 1.5” maximum drilling capacity.
- Includes 29” x 8” milling-style table which expands the machine’s possible uses.
- Gear-driven head allows you to run tooling at the proper speed for each mill, drill or tap size available: 90, 210, 345, 670, 1180, 1970 rpm.
- Rigid base and very wide cast column adds to machine’s strength and eliminates flexing when milling or drilling at full capacity.
- Comes standard with coolant system, R8 spindle taper, and a flexible halogen light.
Specifications
| Model Number | VMD-828G |
| Drilling Capacity (In.) | 1.5 |
| Face Mill Capacity (In.) | 3 |
| Motor Voltage (V.) | 110 / 1 Phase |
| Motor (HP) | 2 hp |
| Number of Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM |
| T-Slots Number and Size (In.) | .550″ |
| Table Size (L x W) (In.) | 29″ X 8″ |
| Weight (Lbs.) | 815 |
*Specifications subject to change without notice.
