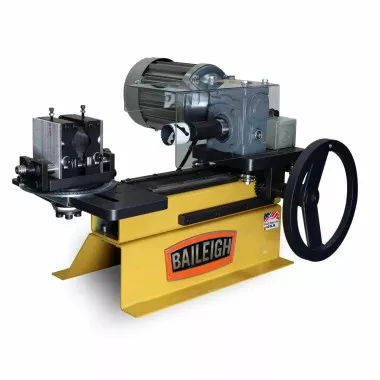

Baileigh TN-300 pipe notcher
What makes the TN-300 pipe notcher the best production hole saw tube notcher on the market today? Baileigh eliminated the need for a hand drill to create a more useful tool for fabricators.
Features
- Proudly made in the USA.
- Requires 110-volt single-phase power.
- Notches .5” to 3” tube and .5” to 2.5” schedule 40 pipes.
- You can adjust the notching angle up to 220°.
- High-quality .5 hp motor will last through years of profitable production.
- Runs at 233 rpm to give an optimal combination of saw life and cutting speed.
- Quick-release cam-centric vise and solid taper lock enable you to set up different notch angles in seconds.
- Includes a large degree wheel for indexing the vise.
- Designed for easy operation: just turn it on, grab the hand wheel, and rotate it toward the material.
- Rigid steel plate base and industrial-grade components help to reduce vibrations made by the hole saw.
Specifications
| Model Number | TN-300 |
| Motor (HP) | 1/2 |
| Notch Capacity (in./OD) | 5/8″ – 3″ |
| Volts | 110 |
| Weight (Lbs.) | 220 |
*Specifications subject to change without notice.
