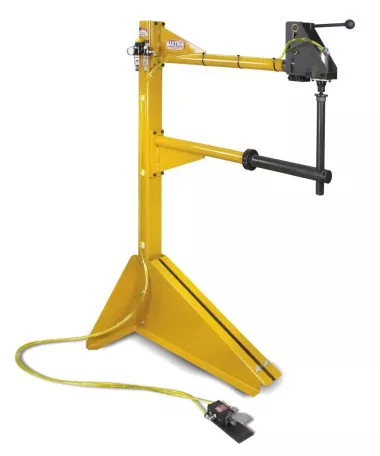

Baileigh PH-36A planishing hammer
The most versatile planishing hammer on the market, this air-powered model lands 3,200 beats per minute to give you a smooth finish. This Baileigh planishing hammer arrives fully assembled with 7 dies.
Features
- 16 gauge mild steel capacity.
- 36” throat depth enables you to finish larger pieces.
- Air motor runs on just 90-120 psi.
- Completely rebuildable air motor lets you change the characteristics of the hit for your application.
- Top and bottom supports have adjustable length for offset planishing.
- Foot pedal operation leaves your hands free to move the material.
- Includes 7 radius dies: flat, 2”, 3”, 6”, 8”, 12”, and 24”.
- Automatic oiler keeps your machine running smoothly and saves you time on maintenance
- We offer an optional dog-leg brace for tight radii applications.
Specifications
| Model Number | PH-36A |
| Aluminum Capacity (Gauge) | 14 |
| Included Tooling | Flat 2″, 3″, 6″, 12″, 24″ Radii |
| Input Power | 90 – 120 Psi. |
| Mild Steel Capacity (Gauge) | 16 |
| Range of Speeds | 3200 beats / minute |
| Shipping Dimensions (L x W x H) (In.) | 60 x 44 x 68 |
| Throat Depth (In.) | 36″ |
| Aluminum Capacity | 14 |
| Tooling Height Adjustment (In.) | 11 |
| Weight (Lbs.) | 275 |
*Specifications subject to change without notice.
