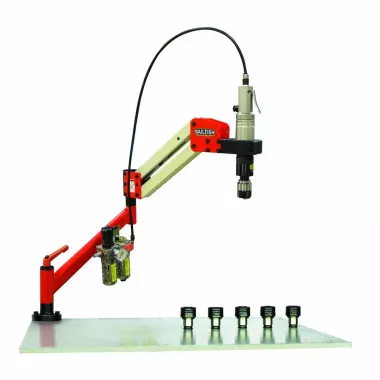

Baileigh ATM-27-1000 pneumatic tapping arm
The ATM-27-1000 pneumatic tapping arm from Baileigh industrial is a heavy duty articulating tool support arm designed to provide fingertip control for the most demanding applications. The sturdy cast iron swing arm is connected to the base by means of a hardened and ground shaft that incorporates a leveling system. The twin parallel arms are made of heavy gauge aluminum tubing that is effective at neutralizing vibration and torque reaction.
The included pneumatic motor spins at 220 rpm and includes 6 different tap holders. Another nice feature of the ATM-27-1000 heavy duty industrial articulating arm is that is has an ergonomic design, this is to protect workers from injuries that tend to develop over time during repetitious work.
Features
- Air tapping spindle.
- Work range 3.93″ to 39.3″.
- Slanted arm.
- Table mount system.
- 1/4″, 3/8″, 1/2″, 5/8″, 3/4″ and 7/8″ tap holders included.
Specifications
| Model Number | ATM-27-1000 |
| Auto Depth Control | No |
| Included Tap Holders | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″ and 7/8″ |
| Max Work Range | 39.3 |
| Minimum Work Range | 3.93 |
| Number of Spindle Speeds | 220 rpm |
| Shipping Dimensions (L x W x H) (In.) | 69 x 44 x 32 |
| Spindle Operation | Pneumatic |
| Tapping Range | .11″ to 1″ |
| Weight (Lbs.) | 55 |
*Specifications subject to change without notice.
