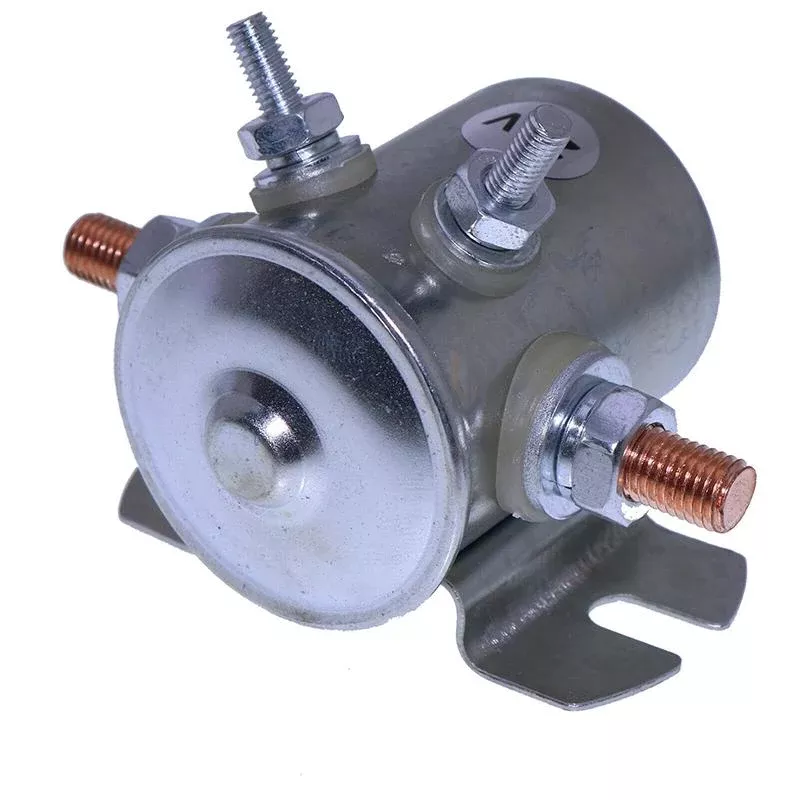

12V Solenoid Relay Switch for Johnson Electric 5118840 5051189 5118940 SO51188
Replace Part Number:
Meyer Products: 56134
Carrier Transicold: 10-01088
Cole Hersee: 24401,24401BX
United Technologies: SO-51189
Prestolite: SBD4201A, 15-323, 15-386, SBD4201G, WR 70-311224-5 / 70-311224-5A 70-311224-5 / 70-311224-5A
Johnson Electric: 5118840, 5051189, 5118940, SO51188
Description:
Solenoid Relay Switch Continuous Duty For Autocrane Boom Winch Marine Golf Cart
Specification:
12 Volt, 6-Terminal (S.P.D.T)
Continuous Duty
Copper contact terminals
Insulated base w/ steel housing
If you are in doubt, please send us message.
Flat mounting bracket.
Mounting holes: 5/16 x 19/32, 2-13/64 on centers.
Note:
Rated 35 Amps at Normally Open Contacts & 85 Amps at Normally Closed Contact
Dimensions:
2) 5/16-24 Contact Terms.
4) 10-32 Terminal
Application:
Fit for follwing models:
Winch motor
Golf Cart
Industrial
Marine
Autocrane
